Under IS 15683, Raw Material & Component Verification (Incoming QC) requires strict testing of all raw supplies against their respective Indian Standards before assembly:

• Cylinder Metallurgy: Verification of cold-rolled steel, aluminum, or seamless steel sheets (IS 513 / IS 7285) for chemical composition, minimum wall thickness (tmin⁡tmin​), and weldability.
• Extinguishing Media: Purity, moisture (<0.25%<0.25%), and flowability testing for ABC powder (IS 4308), BC powder (IS 4308), foam concentrate (IS 4989), and CO2CO2​ gas (IS 15222).
• Valves & Gauges: Brass/stainless valves thread-checked (Go/No-Go) and pressure-tested; gauges calibrated for ±4%±4% accuracy on dead-weight testers.
• Hoses & Rubber Components: Hoses tested to withstand ≥3×≥3× working pressure without rupture; plastic fittings and O-rings verified for thermal endurance (+60∘C+60∘C to −30∘C−30∘C).
• Safety Mechanisms: Tamper seals and safety pins tested on force gauges to ensure pull-out force stays strictly between 20 N and 100 N

In-Process Manufacturing Quality Control (IPQC) under IS 15683 covers real-time inline checks during production to ensure structural and operational reliability:

• 100% Hydrostatic Proof Test: Every shell undergoes water pressure testing at 1.5×1.5× to 2×2× working pressure for at least 30 seconds with zero leakage or distortion.
• Coating Integrity: External powder coating thickness verified (50–80 microns) with cross-hatch adhesion tests; internal lining for liquid units spark-tested for pinhole-free coverage.
• Filling Precision: Automated inline weigh-scale checks enforcing strict mass tolerances (±2%±2% for powder, ±1%±1% for liquid, ±5%±5% for CO2CO2​).
• Leak Detection: Pressurized units (with dry nitrogen) are submerged in warm water or run through electronic sniffer detectors to prevent micro-leaks.
• Assembly Controls: Automated torque-controlled valve tightening, dip tube inspection, and safety seal pull-force verification (20 N to 100 N).

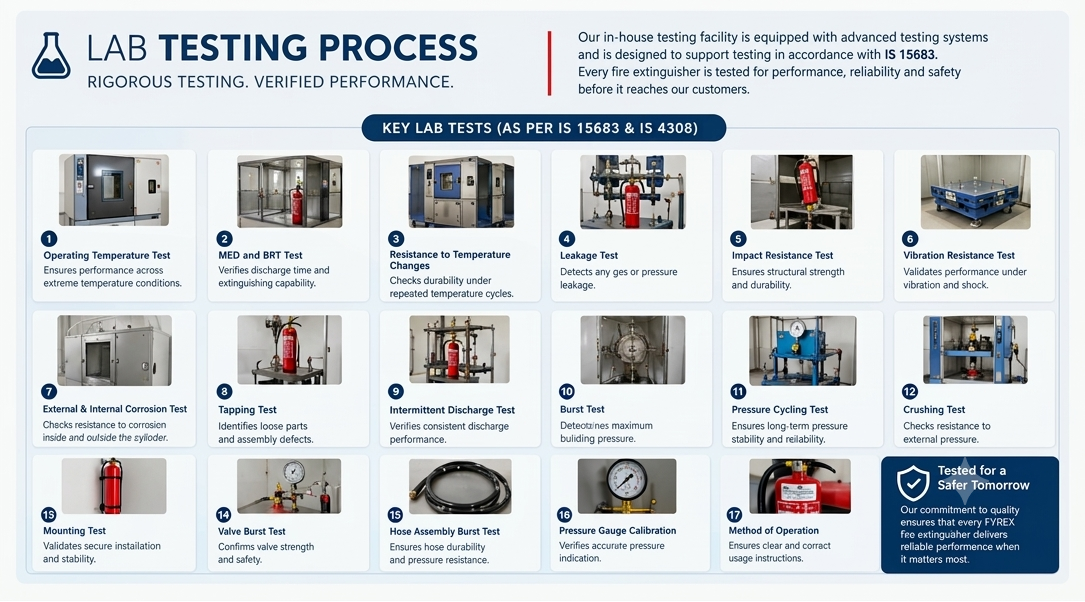

Random batch sampling is conducted by QA personnel according to the AQL (Acceptable Quality Level) defined in IS 15683.

Batch Selection ──► Mechanical & Environmental Testing ──► Fire Rating Fire Test ──► ISI Marking

Physical & Mechanical Destruction Tests

1. Burst Pressure Test:Minimum burst pressure must be ≥2.7 to 3× working pressure depending on the shell material.Failure mode must be ductile (no shrapnel or fragmentation).
2. Pressure Cycling Test:Shell subjected to 5,000 pressure cycles between zero and working pressure at a rate of 12–15 cycles/min, followed by a final proof test.
3. Crush Test:Shell placed between two parallel flat plates and compressed to 1/3 of its original outer diameter without cracking or seam separation.

Environmental & Operational Testing

• Temperature Extreme Storage: Units are stored at extreme limits (−30∘C to +60∘C depending on class) for 24 hours before testing discharge performance.
• Discharge Efficiency:Minimum 85% for dry powders and 95% for liquids/foam of nominal contents must be discharged.Discharge range (jet length) and total time must strictly match declared ratings.
• Micro-Leakage Detection:Stored-pressure units are immersed in warm water baths or evaluated via helium mass spectrometer leak detectors. Max allowable leak rate: <6%<6% of nominal charge per year.
• Salt Spray Corrosion Test:Completed units undergo 240 to 480 hours of continuous neutral salt spray (NSS) exposure per IS 9000 / ASTM B117 without showing base metal corrosion or operating mechanism binding.
• Resistance to Vibration:Multi-axis vibration testing followed by a discharge test to confirm powder compacting/caking has not occurred.

Fire Performance Test (Type Testing)

Representative units are subjected to standardized live fire tests:

• Class A Rating (Wood Crib): Verification of extinction time and burn-back prevention on standardized wooden crib constructions.
• Class B Rating (Flammable Liquid Trays): Rapid suppression test on heptane/water trays within strict time frames.
• Electrical Non-Conductivity (Class C/Liquid Mist): Liquid extinguishers tested against a live metal plate at 36,000 Volts (36 kV) — current leakage through the discharge stream to ground must not exceed 0.5 mA.

To maintain an active ISI Mark License (CM/L) under BIS guidelines:

In-House Testing Laboratory: The manufacturing plant must maintain a fully equipped, climate-controlled laboratory containing calibrated dead-weight testers, salt spray chambers, environmental test ovens/freezers, burst pressure rigs, and electrical insulation test gear.

Surveillance & Audits: Regular unannounced surveillance visits by BIS inspectors include random sampling from factory inventory and the market for independent testing at national laboratories (e.g., NTH, Central Building Research Institute).
